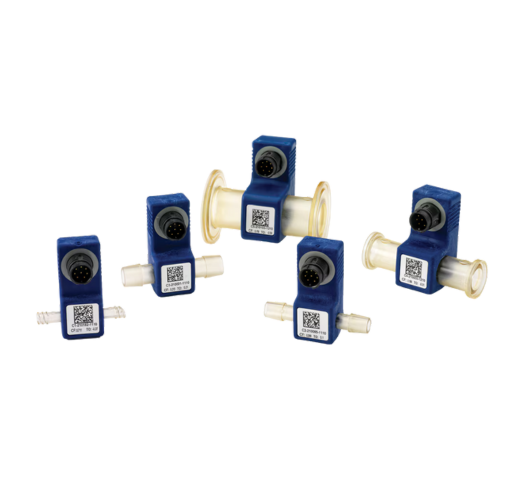

SciLog® SciCon® Conductivity Sensor

Single Use Assembly Benefits

The only pre-calibrated, single-use conductivity sensors with a gamma-stable memory device that stores data of all calibration and sensor-specific information.

  • Pre-calibrated
  • NIST-traceable
  • Certified Calibration
  • Gamma-stable
  • NaOH Stable
  • Autoclave Stable

The SciCon® fully integrates and optimises most existing systems, including:

  • Aseptic Filtration
  • Chromatography
  • Reverse Osmosis
  • Ultrapure water
  • Bags & Manifolds

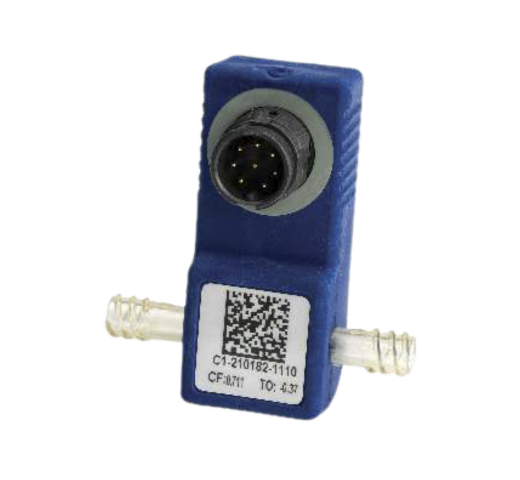

Luer

SCILOG SCICON LUER

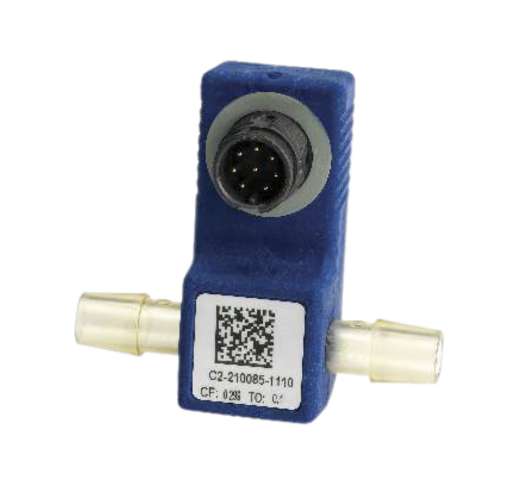

3/8″ Barb

SCILOG SCICON 3/8

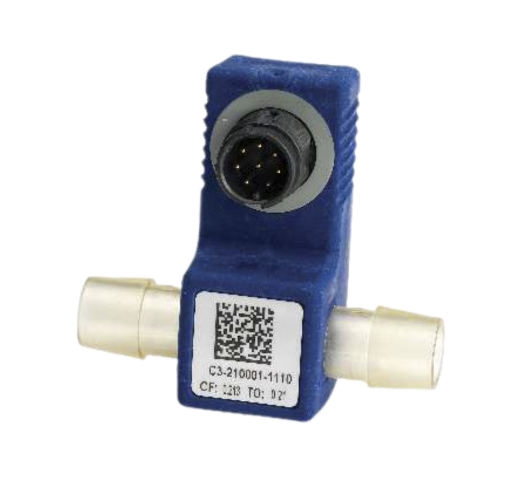

1/2″ Barb

SCILOG SCICON 1/2

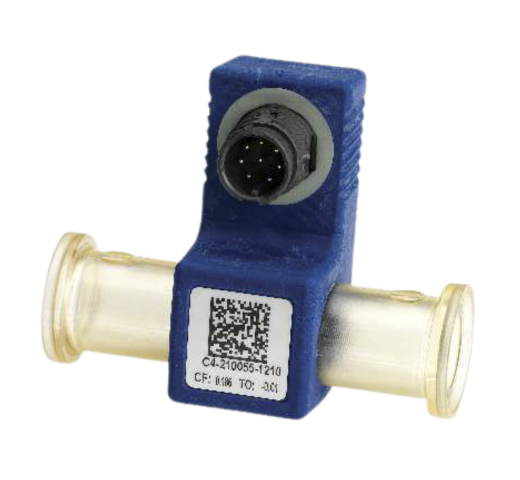

3/4″ Tri-Clover

SCILOG SCICON 3/4

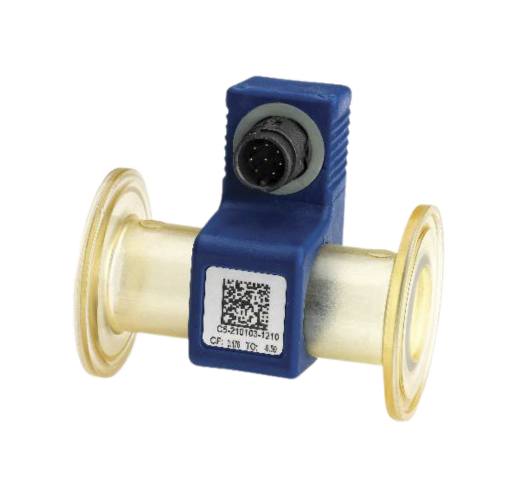

1″ Tri-Clover ‘Ladish’

1

Single Use Assembly Technical Data

High Range: 0.1 – 200mS range (± 0.25 mS Accuracy)

Low Range: 0 – 100µS range (± 3 µS Accuracy)

Luer

3/8″ Barb

1/2″ Barb

3/4″ Tri-Clover

Design temperature: 150°C

Design pressure: 10 barg, 6 barg if pneumatic valve

Welding: According to EN-287-1

SciCon® sensors can increase the efficiency of downstream purification operations such as diafiltration and chromatography through accurate measurement of conductivity parameters. Measuring conductivity allows operators to monitor the progress of diafiltrations, indicating when a target process stream conductivity has been met. Similarly, the conductivity of the solution also gives an indication of the progress of ion exchange or hydrophobic interaction chromatography steps. In addition, conductivity measurement provides a quantified review of filters being equilibrated before performing filtration, ensuring the readiness of the filter media as well as minimising the quantity of buffer required during the flushing and equilibration process.

SENSOR SPECIFICATIONS

STERILISABILITY

  • Can be Sanitised: IPA 70% Na0H (0.1 N – 1.0N)
  • Autoclavable: (1x)
  • Gamma Stable: 25-45 kGy

MATERIAL, FLUID CONTACT

  • Medical grade polysulphone
  • Meets USP Class VI and FDA 21 CRF 177.1520
  • All wetted materials are made of animal-free compounds

SENSOR TYPE

  • 4-Electrode Conductivity Cell

TEMPERATURE PROBE

  • Thermistor

SENSOR MICROCHIP

  • EPROM
  • Stored Sensor ID & Calibration Factor

SENSOR CONNECTOR & CABLES

  • Dust & Water Proof IP67

SIZE, PART CODES & SPECIFICATIONS

Connector Type Part Code (Packs of 5) Compatible Tubing Sizes Max. Flow Rate* Max. Pressure
Luer 080-599PSX-5
080-599PSX-5-G
ID 0.03″ to 0.31″ 1L/min 60 PSI
3/8″ Barb 080-594PSX-5
080-594PSX-5-G
ID 0.31″ to 0.38″ 8L/min 60 PSI
1/2″ Barb 080-595PSX-5
080-595PSX-5-G
ID 0.50″ 17L/min 60 PSI
3/4″ Tri-Clover (TC) 080-596PSX-5
080-596PSX-5-G
Tubing with 3/4″ TC 31L/min 60 PSI
1″ Tri-Clover ‘Ladish’ 080-597PSX-5
080-597PSX-5-G
Tubing with 1″ TC Ladish 60L/min 60 PSI

-G = Gamma parts

*Maximum flow rate @1 PSI

Single Use Assembly Application

  • Aseptic filtration
  • Chromatography
  • Reverse osmosis
  • Ultrapure water
  • Bags and manifolds
