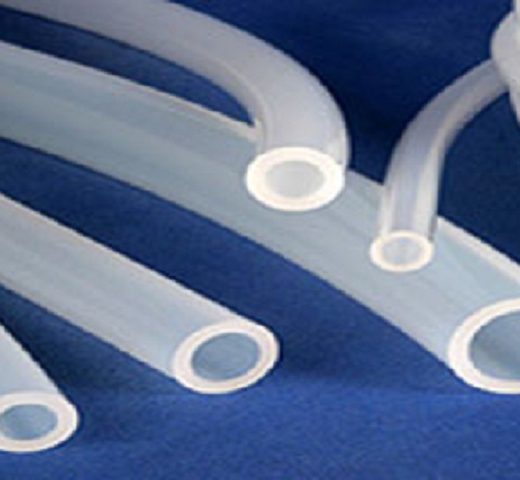

AdvantaSil® APHP: High Pressure Silicone Tubing

Single Use Assembly Benefits

  • Eliminates particulate shedding that can occur when cutting braid reinforced hose.
  • Allows for processing at higher flow rates.
  • Full vacuum capabilities on most sizes.
  • Handles short-run peristaltic pump applications requiring 30 psi back pressure.



Single Use Assembly Technical Data

  • General temperature range: -65°F (-53.9°C) to 400°F (204.4°C).
  • Flexible and translucent.
  • Resists temperature extremes, compression set, chemical attack, ozone, radiation, moisture and environmental exposure.
  • Sterilisable by autoclave or gamma radiation.
  • Documented lot traceable with identification on bags.
  • Available with validated sterility assurance of 10-6 via gamma irradiation per ISO 11137 method VDmax 25.
  • Complete validation package and BPOG test results available upon request.

Important Note:

Specific cutting techniques are strongly recommended for AdvantaSil APHP High-Pressure Silicone Tubing. APHP must be cut with a chevron-style cutter at a 90-degree angle to the tubing, leaving a smooth, non-jagged, perpendicular cut at the tubing end.  See the video above for more information.

Single Use Assembly Application

AdvantaSil High Pressure is the optimal choice for Single-Use applications such as:

  • TFF
  • Virus Filtration
  • Inline Integrity Testing of Filtration Assemblies
  • High Volume Fluid Transfer

AdvantaSil High Pressure is not intended for implantation or continuous steam applications.
