Parker SciPres II Series - Single-Use Biopharm Pressure Sensor & Monitor

Parker SciPres II Series – Single-Use Biopharm Pressure Sensor & Monitor

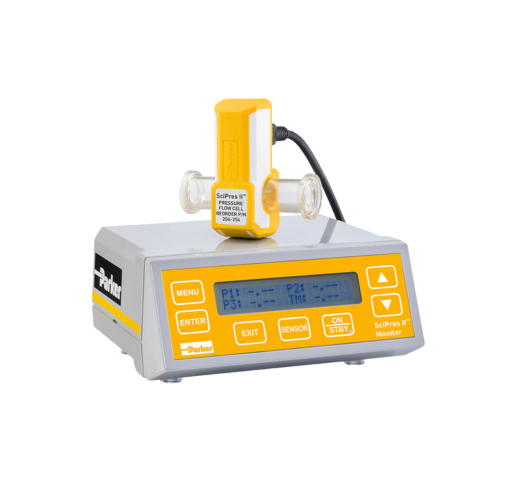

The SciPres II is a digital pressure monitoring system that simultaneously monitors, displays and documents pressure from three independent single-use, pre-calibrated pressure sensors (P1, P2, and P3) plus a calculated transmembrane or differential pressure (TMP or DP). When combined with SciDoc software, data is collected in real time and stored on your laptop computer. In addition, the system features a digital output alarm to signal high and low pressure for each of the three connected sensors, as well as transmembrane pressure or differential pressure.

SciPres II single-use sensors were designed as a standalone product or component to our laboratory pump series and bioprocessing NFF and TFF systems.

Single Use Assembly Benefits

Pre-calibrated
NIST-traceable
Certified calibration
Extended-use sensors (optional)
Gamma-stable
NaOH stable
Autoclave stable
Comprehensive customer support

Single Use Assembly Technical Data

Operating Pressure: -10 to 60 psi, -0.69 to 4.14 bar (gamma irradiated version to be used for vacuum applications)

Operating Temperature: 0 to 60 °C

Accuracy: ± 3 % of Reading, 0-60 Psi

Flow Rate: Up to 60 L/min

Options: Gamma Irradiated or Non-Gamma Irradiated

MATERIALS OF CONSTRUCTION

Sensor Transfer Tube: Medical-Grade Polysulfone
Sensor Gasket: Silicone
Monitor: Moulded Plastic & Stainless Steel

SPECIFICATIONS MET

Sensors: USP Class VI, REACH, RoHS, WEEE
Monitor: CE, RoHS, WEE, Intertek

CONNECTION TYPE

Luer, 3/8″ Barb, 1/2″ Barb, 3/4″ Tri-Clamp, 1″ Tri-Clamp ‘Ladish’

Single Use Assembly Application

Protein purification and concentration (e.g. whole cells, animal and bacterial cell lysates, monoclonal antibodies)
Ultrafiltration, microfiltration, diafiltration and perfusion
Protein Concentration/Diafiltration by TFF
NFF or Normal Flow Filtration
Chromatography Column Loading (a.k.a. “Chrome Loading”)
Fermentation
Bag Manifolds

Download

Download Data Sheet
