CYLINDRAFlow™ Manifolds

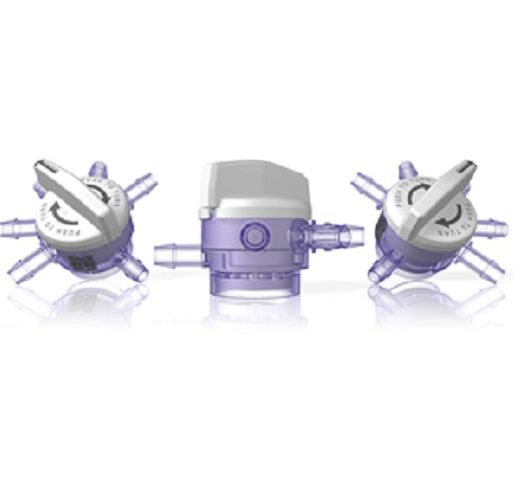

Nordson Medical has introduced the first all-in-one manifold for pharmaceutical and single-use biopharmaceutical fluid transfer applications. The revolutionary design of this patent-pending, compact fitting not only saves space but also simplifies use and assembly. With five ports available in one component, gone are the many leak points found in traditional stopcock and Y connector manifolds.

Benefits

Multiple bags can easily be filled from one large bag, ideal for downstream processing. Flow is consistent as it travels around the inner body of the part, maintaining a steady pressure. The large flow selector is effortless to turn, and the lock-in-place feature assures you that you are utilising the desired port.

Technical Data

Can accommodate up to 5 fluid lines
Flow restricted to one port at a time
No pressure drop as fluid moves around and through the ports
Intuitive push-to-turn flow selector
Easier to use and fewer leak points than stopcock and Y connector manifolds
Materials meet USP Class VI & ISO 10993 criteria
Gamma radiation stable
Can be daisy-chained for additional ports

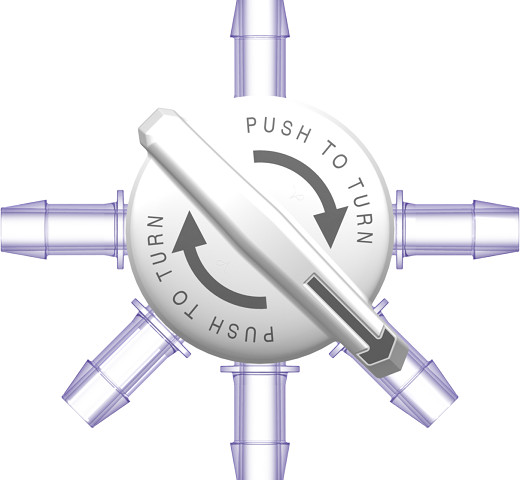

Arrows to provide a clear indication of how to turn the flow selector and which port is in use
Etched data code for easy access to product resources and material information

Application

Ideal for downstream processing
