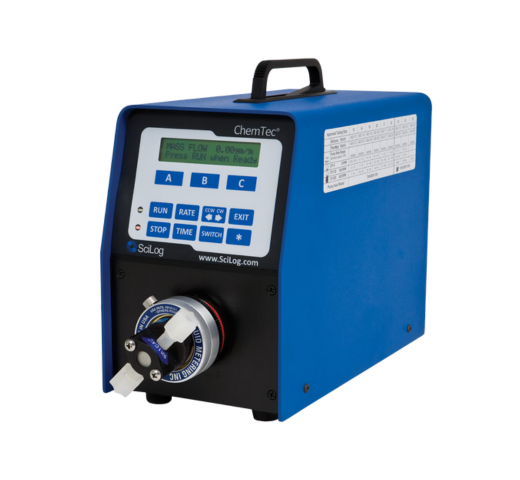

Parker ChemTec™ Automated Metering System

Single Use Assembly Benefits

  • Volumetric or gravimetric operation
  • Compatible with most 3rd party balances
  • Real-time data collection
  • Dispense accuracy <0.5% error
  • Intuitive application interface
  • Safe, walk-away systems operation

Single Use Assembly Technical Data

Description
Dimension / Weight Width: 5.75″ (146 mm) x Height: 8.5″ (2126 mm) x Depth: 11″ (279 mm): 14 lbs (6.4 Kg)
Enclosure & Rating 16 Ga, aluminium baked epoxy blue 4-40dC, 0-100% humidity, IP20
Pressure Sensors Accommodates up to three (3) disposable pressure sensors. The calibrated pressure
range is 0-60 psi. Any point within this range can be recalibrated using an external
pressure reference source.
Power 115 / 220-240 VAC, 60/50 Hz, 75 Watts, double fused: T1AL 250V (CE: IR35A 250VAC)
Motor / Encoder 8, 160, 600, 3400, RPM, 30 VDC, 3.8A, 120 ppr 8 and 160 RPM, 100 ppr 600, 3400 RPM
I/O Ports Male DB9 Scale Connections (RS-232), female DB9 printer or PC connection (RS-232),
external IO DB37 connector, 1 TTL input, 4 TTL output, 3 4-20mA
Operational Mode Mass flow, volume flow, diafiltration, pH and manual mode
