Parker MabTec® - Automated Cell Culture Maintenance System

Parker MabTec® – Automated Cell Culture Maintenance System

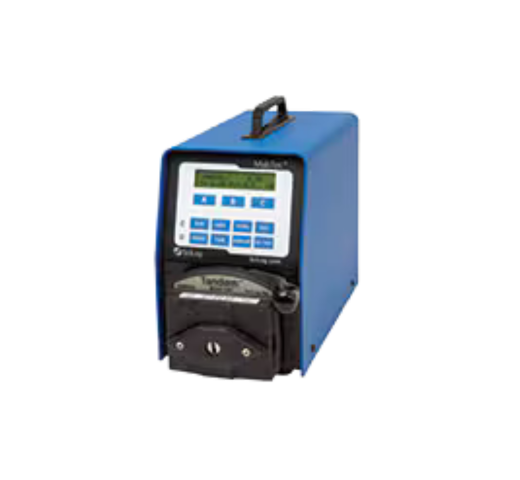

The SciLog® MabTec® is an automated high-density cell culture system

The MabTec® high-density cell culture system is a fully automated gravimetric bioreactor maintenance system. Its capabilities include automated feed, harvest, or recirculation in fully disposable or hybrid bioreactor flow paths. The system also includes the ability to conduct unattended bioreactor inoculations, bolus feed and/or pump flow reversals (to prevent filter fouling), all on one unit with run times from hours to months.

The MabTec® is available with a choice of pump heads and can feed bioreactor sizes from 50 ml to 2000 L. The MabTec® is engineered to fit seamlessly with any bioreactor and enhance its performance. A laboratory scale, available separately, must be connected to use MabTec®’s gravimetric features.

Single Use Assembly Benefits

Safe, walk-away system operation
Maintains a steady state bioreactor weight/volume within +/- 0.5%
Real-time data collection with optimisation tools
Small, lightweight and mobile
Works with any bioreactor
Eliminates bioreactor addition errors
Reduces the aggregation of cells in the perfusion filter
Intuitive application interface

Single Use Assembly Technical Data

Description
Dimension / Weight	Width: 5.75″ (146 mm) x Height: 8.5″ (2126 mm) x Depth: 11″ (279 mm): 14 lbs (6.4 Kg)
Enclosure & Rating	16 Ga, aluminium baked epoxy blue 4-40dC, 0-100% humidity, IP20
Pressure Sensors	Accommodates three disposable pressure sensors (included). The calibrated pressure range is 0-60 psi. Any point within this range can be recalibrated using an external pressure reference source.
Power	115/220-240 VAC, 60/50 Hz, 75 Watts, double fused: T1AL 250V (CE: IR35A 250VAC)
Motor / Encoder	8, 160, 600 RPM, 30 VDC, 3.8A, 120 ppr 8 and 160 RPM, 600 RPM 100ppr
I/O Ports	Male DB9 scale connections, female DB9 printer of PC connection, external IO DB37 connector 4 TTL input, 3 4-20mA analog input: constant rate / constant pressure filtration with size user-definable alarms
Operational Mode	Exact Feed: 2 scales, perfusion, re-circulation, feed: 2 scale, feed: 1 scale, seed induction, manual

Single Use Assembly Application

Bioreactor Maintenance
Buffer Preparation
Bulk Drug Dispense
Cell Culture Harvest
Growth Media Preparation
Product Filtration
Tangential Flow Filtration
Virus Control
