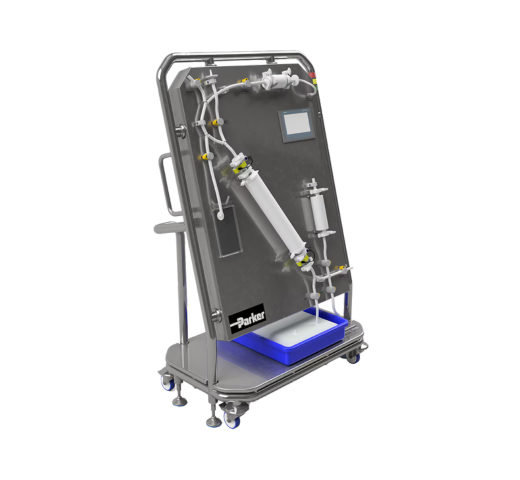

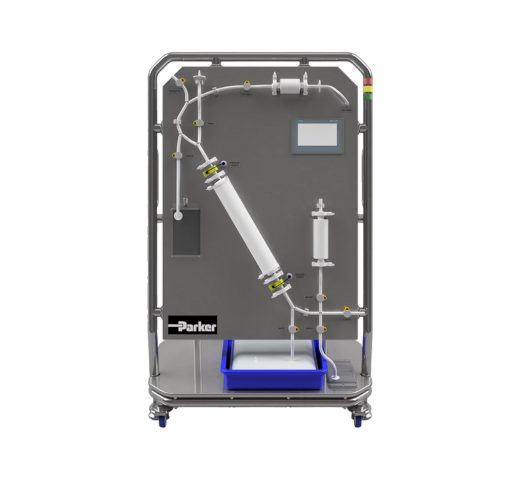

Parker SciLog NFF+ PS Semi-Automated System with PUPSIT Capabilities

The SciLog® NFF+ PS is a multipurpose Normal Flow Filtration (NFF) system designed to facilitate the execution of pre-use post-sterilisation integrity testing (PUPSIT) and post-use filter integrity testing, with semi-automated control.

The system supports the use of an external integrity tester and pump, incorporated within the compact footprint for GMP operating environments.

Single Use Assembly Benefits

Configurable recipe creation to control the process
SIEMENS TIA Portal-based control system
Pre-defined options for valve control for final fill process steps, including PUPSIT and post-use integrity testing
Execute PUPSIT as part of the sequence before continuing to product processing
Visual indicator for valve positioning (open/ closed)
Touch-screen HMI with an intuitive graphical interface
User configurable alarms and interlocks
Supports the use of an external integrity tester, pressure monitoring and pump
Redundant filtration variant available (SciLog® NFF+ PSR)
Intuitive manifold installation and process operation
Complete process visibility
Process step selection— supporting automated valve control for simplified process operation and minimising human error
Supports use of external integrity tester— enables use of validated equipment in conjunction with a manual support unit
Sterilising filter can be integrity tested and validated on the system, before proceeding to filtering, or integrity testing the sterilising filter post-use directly on the system/ in the assembly
Closed system designed for the cleanroom

Single Use Assembly Technical Data

Height: 1900 mm

Width: 1200 mm (1500 mm PSR)

Depth: 700 mm

Sensor Type: Single-use, in-line sensors and fixed, membrane sensors options available

Number of Ports: Ethernet port for plant communication. Connections for 2 x scales to monitor flux of media through filter.

Flow Rate: Pump dependent

Options: Redundant Filtration (PSR)

MATERIALS OF CONSTRUCTION

316L stainless steel framework (304L on request), mobile platform. Clean room compliance.

Single Use Assembly Application

Bulk Fill
Final Fill
