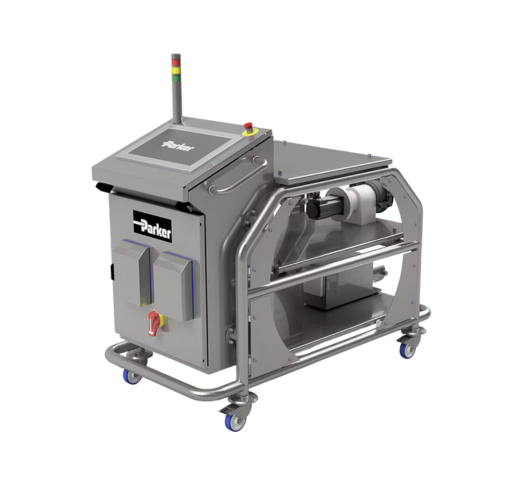

Parker SciLog TFF Automated Tangential Flow Filtration Systems

Utilising single-use assemblies and sensing technology, the system is compatible with any brand of TFF hollow fibre or cassette filters, ensuring flexibility to fit Parker’s automation capabilities to customer process specifications.

The SciLog® TFF Systems incorporate SciPres® II pressure sensor technology to automatically monitor, adjust and document pressure, flow rates and transmembrane pressure to prevent extreme pressure over the membrane. This, in turn, safeguards the filter to maximise its lifetime and efficiency.

In conjunction with Parker’s single-use manifolds, SciLog® TFF Systems can be configured to achieve flow rates of between 0.33 and 83 L/min, with options of peristaltic and diaphragm feed pumps available.

Single Use Assembly Benefits

Capable of processing at flow rates of 0.33-83 L/min, depending on format
Operating pressure up to 4 barg
Suitable for ultrafiltration and microfiltration applications and comes standard with diafiltration capabilities
Configurable recipe creation to control the process either in discrete steps or batch mode
Touch-screen HMI with an intuitive graphical interface
User-friendly workflow
Siemens TIA Portal-based control system
Fully programmable alarms and interlocks
FDA 21 CFR Part 11 and EudraLex Annex 11 Compliance
Easy integration into DCS/SCADA systems
Direct connection to scales and mixers
User access level control via local or Active Directory
Minimises retentate vessel size using batch-fed concentration mode
Designed with optimal cleanability in mind

Single Use Assembly Technical Data

Specifications Met: FDA 21 CFR Part 11, EudraLex Annex 11

Sensor Connection: 3 x Pressure Sensor Connections (DIN)

Sensor Type: SciPres® II Pressure Sensor, SciCon® II Conductivity Sensor

Pump Type: Active Directory Integration

Flow Rate: 0.2 to 83 L/min

MATERIALS OF CONSTRUCTION

304L stainless steel framework (316L on request), mobile platform with pharmaceutical grade casters. IPx5
