Parker PureTain® Single-Use Fluid Management Containers - SpinBag Mixing System

Parker PureTain® Single-Use Fluid Management Containers – SpinBag Mixing System

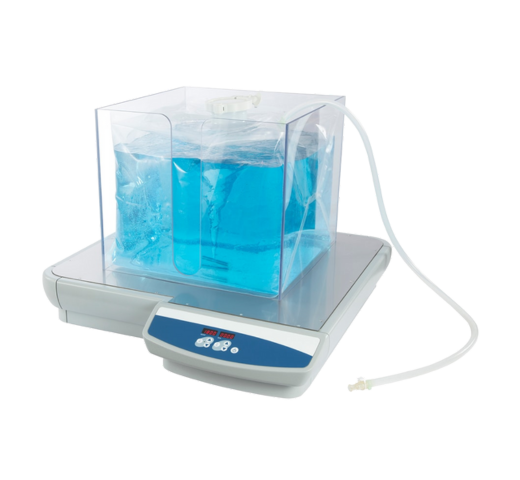

Parker’s 3D SpinBag bioprocess containers are constructed of durable, particle-free, DuraPure C93 film, each containing a platinum-cured silicone-coated magnetic spin bar. When placed on a mixing plate, the spin bar rotates to create a vortex of motion for thorough mixing/stirring of fluid contents. Parker SpinBags are available in a variety of sizes and port configurations to easily integrate within your application.

For a complete SpinBag Mixing System solution, Parker offers both standard and custom SpinBag designs capable of handling volumes from 5L to 50L. Our range of mixers is easy to operate with digital control panels to adjust speed and set temperature accuracy.

Benefits

Constructed of fully validated DuraPure C93 film offering added seal strength, low gas permeability and optical clarity, which can be heated to 60°C
Stores flat and ideal for the preparation of cell culture media, buffers, bioreactor feeds, and suspension/re-suspension applications
Easily integrated with filters, sensors and pumping systems
Available with standard configurations, or a variety of ports and tubing options in non-irradiated or gamma-irradiated
Platinum-cured silicone-coated magnetic stir bar offers optimal mixing performance and eliminates the need to validate another material
Manufactured in an ISO Class 7 cleanroom

Technical Data

SpinBag Configurations and Sizes

Two standard configurations are available in 5L, 10L, 20L and 50L sizes:

Upstream SpinBag containers are supplied non-gamma irradiated and are configured with a 3” TC inlet port for inserting powders and liquids. The bottom outlet port is connected to 12” of ⅜” inside diameter platinum-cured silicone tubing with male non-valved coupling inserts.
Downstream SpinBag containers are supplied non-gamma irradiated or gamma irradiated and are configured with two ⅜” inlet (top) and outlet (bottom) ports. Each port is connected to 12” of ⅜” inside diameter platinum-cured silicone tubing with male non-valved coupling inserts.

Options and Accessories

Spin plates are available in two sizes for bags up to 15L or 20L and greater.
SpinBag housings are constructed of durable polycarbonate for added stability on spin plates with larger capacity bags. Available in three sizes to accommodate 15L, 20L and 50L bags.

Application

Media / Buffer Prep
Viral Inactivation
Tangential Flow Filtration Retentate Vessel
Drug Substance / Drug Product Formulation
Vaccine Production
Compound Pharmacy
