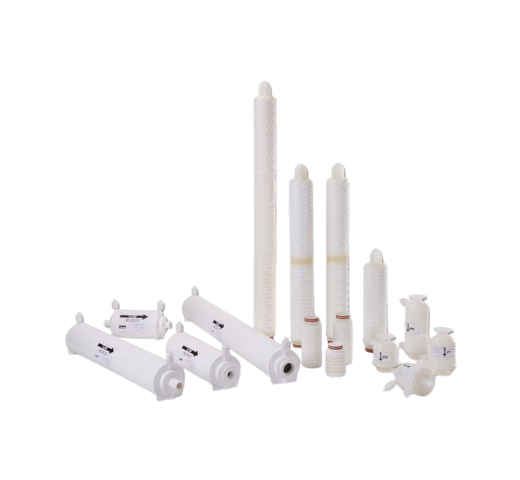

Parker PROPOR BR Filters

PROPOR BR filters combine an integral meltblown prefilter layer with a high-performance polyethersulfone membrane to deliver exceptional dirt-holding capacity and reliable microbial protection, achieving a bioburden log reduction greater than 5. This makes them ideal for bioburden reduction of Large Volume Parenterals (LVPS) before terminal sterilisation.

Designed for durability and consistency, PROPOR BR filters are also perfect for prefiltration and bioburden reduction before sterilising-grade membrane filtration. Their robust construction ensures consistent performance across multiple production batches.

Make An Enquiry

Single Use Assembly Benefits

  • Greater than 5 LRV for Brevundimonas diminuta for effective bioburden reduction
  • An integral prefilter layer for increased capacity and higher throughput before blockage
  • Low protein binding to minimise product loss during processing
  • Low extractable levels to support product purity
  • Single-use capsules are available gamma-irradiated and autoclaved for added flexibility
  • PFAS-free options are available to support regulatory compliance and sustainability initiatives

Single Use Assembly Technical Data

Brand: Parker

Industry: Pharmaceuticals

Application: Bioburden Reduction

Product Type: Liquid Filter Element

MATERIALS OF CONSTRUCTION

  • Filtration Membrane: Polyethersulphone
  • Pre-Filter Layer, Upstream & Downstream Support: Polyester

FILTER CARTRIDGES

  • Inner Support Core & Outer Protection Cage: Polypropylene
  • End Caps: Nylon
  • End Caps Insert: 316 Stainless Steel

MURUS DISPOSABLE FILTER CAPSULES

  • Core, Sleeve & Capsule Body: Polypropylene
  • End Caps Insert: 316L Stainless Steel
  • Standard O-Rings/Gaskets & Capsules Vent Seals: Silicone

DEMICAP FILTER CAPSULES

  • Core & Sleeve: Polypropylene
  • End Caps & Capsule Body: Nylon
  • Capsules Vent Seals: Silicone
  • Filling Bell: Polycarbonate

SYRINGE FILLERS

  • Body: Polypropylene

RECOMMENDED OPERATING CONDITIONS

FILTER CARTRIDGES

  • Up to 70 °C (158 °F) continuous operating temperature and higher short-term temperatures during CIP to the following limits:
Temperature Max. Forward dP
°C °F (BAR) (PSI)
20 68 5.0 72.5
40 104 4.0 58.0
60 140 3.0 43.5
80 176 2.0 29.0
90 194 1.7 24.6

MURUS DISPOSABLE FILLER CAPSULES

  • Up to 25 °C ( 77 °F) @ 5.5 barg (79.7 psig)
  • Up to 60 °C (140 °F) @ 2.8 barg (40.6 psig)

DEMICAP FILTER CAPSULES

  • Up to 40 °C (104 °F) at line pressures up to 5.0 barg (72 psig).

EFFECTIVE FILTRATION AREA (EFA)

10″ (250 mm) 0.55 m² (5.92 ft²)
K Size 0.26 m² (2.79 ft²)
A Size 0.20 m² (2.15 ft²)
B Size 0.10 m² (1.07 ft²)
E Size 0.05 m² (0.53 ft²)
Syringe ø50 mm 14.50 cm² (2.25 in²)

STERILISATION

Autoclave Steam-in-Place
Cycles Temp Cycles (30 min.) Temp
Cartridges 10 130°C (266° F) 30 130°C (266° F)
MURUS 5 130°C (266° F) – –
DEMICAP 10 130°C (266° F) – –
Syringe 1 130°C (266° F) – –
  • PROPOR BR filter cartridges can be sanitised with hot water at up to 90 °C (194 °F) and are compatible with a wide range of chemicals.

BIOLOGICAL SAFETY

  • Materials conform to the relevant requirements of 21CFR Part 177 and current USP Plastics Class VI – 121 °C and ISO10993 equivalents.

QUALITY STANDARDS

Pharmaceutical grade products are manufactured per cGMP, 100% flushed with pharmaceutical grade purified water and integrity tested before despatch. A sample of each lot is tested to demonstrate conformity to validated claims.

GAMMA-IRRADIATION

PROPOR BR MURUS & DEMICAP disposable filters can be gamma-irradiated up to a maximum dosage of 40 kGy.
