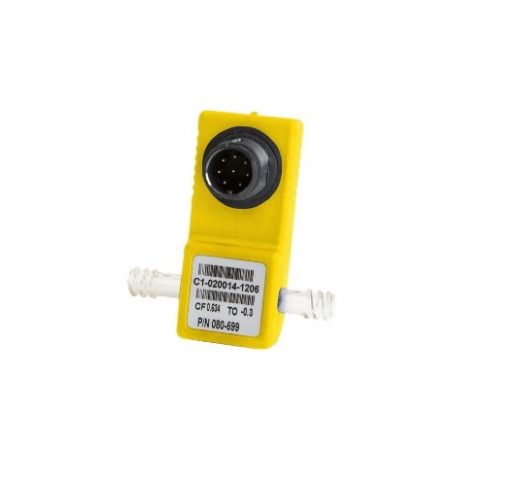

The SciLog® SciPres® combines pressure sensing capabilities and the convenience of disposability with easy setup. Each sensor is pre-programmed and barcoded with a unique ID for easy traceability and data documentation when combined with the SciLog SciDoc software. Factory calibration data is also stored on each sensor’s chip for out-of-box, plug-and-play use. The SciPres comes in 5 different sizes to fit a variety of tubing sizes.
Sizes
3/8″ Barb
Luer 1/2″ Barb

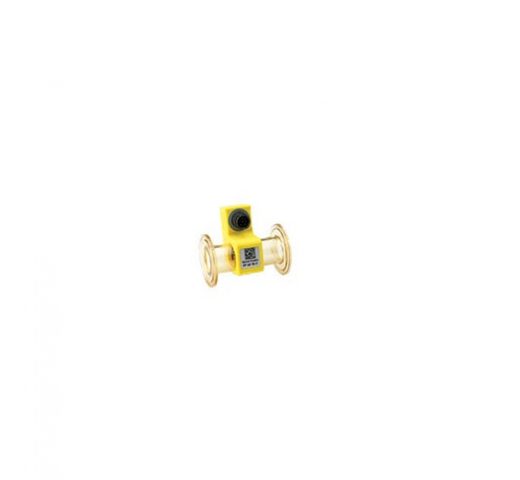

3/4″ Tri-Clover
1.0″ Tri-Clover Ladish
Pressure range: -5 to 60 psi
Pressure accuracy: ± 0.30 psi
The only pre-calibrated, single-use (disposable) pressure sensors with a gamma-stable memory device that stores data of all calibration and sensor-specific information.
| Connector Type | Part Code (Packs of 5) | Compatible Tubing Sizes | Max. Flow Rate** | Max. Operating Pressure | |||
|---|---|---|---|---|---|---|---|
| 2-pt. Calibration | 3-pt. Calibration | L/min | GPM/PSI | m³/H/BAR | |||
| Luer | 080-699PSX-5 080-699PSX-5-G |
080-699PSX-3P-5 080699PSX-3P-5-G |
ID 0.03″ to 0.31″ | 1.0 | 0.26 | 0.23 | 60 PSI |
| 3/8″ Barb | 080-694PSX-5 080-694PSX-5-G |
080-694PSX-3P-5 80-694PSX-3P-5-G |
ID 0.31″ to 0.38″ | 8.0 | 2.11 | 1.81 | 60 PSI |
| 1/2″ Barb | 080-695PSX-5 080-695PSX-5-G |
080-695PSX-3P-5 080-695PSX-3P-5-G |
ID 0.50″ | 17.0 | 4.49 | 3.86 | 60 PSI |
| 3/4″ Tri-Clover (TC) | 080-696PSX-5 080-696PSX-5-G |
080-696PSX-3P-5 080-696PSX-3P-5-G |
Tubing with 3/4″ TC | 31.0 | 8.19 | 7.03 | 60 PSI |
| 1″ Tri-Clover ‘Ladish’ | 080-697PSX-5 080-697PSX-5-G |
080-697PSX-3P-5 080-697PSX-3P-5-G |
Tubing with 1″ TC Ladish | 60.0 | 15.9 | 13.6 | 60 PSI |
-G = Gamma parts
*At the minimum dose, sensor accuracy is unaffected. At maximum dose, accuracy may be reduced to ± 0.6 psi, 0-30 psi range. **Maximum flow rate @1 psi
