Quantex™ High Flow Pump Range

The Quantex™ High Flow pump range has a flowrate of 0-27ml/s at 10RPS. Depending on the application, up to 30ml/s can be achieved by running the pumps at 11RPS. The 20mm rotor carries 2 cavities each with a resolution of 1.35ml. A range of pump configurations provide in-pump dilution, valves and mixers on the outlet. Low-pressure and high-pressure pumps are also available. QX260-DL dilution pumps can manage any dilution ratio from 1:1 to 1:30 where the concentrate flow rate is up to 27ml/s. The diluent flow rate is controlled by pressure regulation and a custom orifice moulded into the pump. See the product range below for more details.

Previously known as the Series 20 range

Product Range & Features

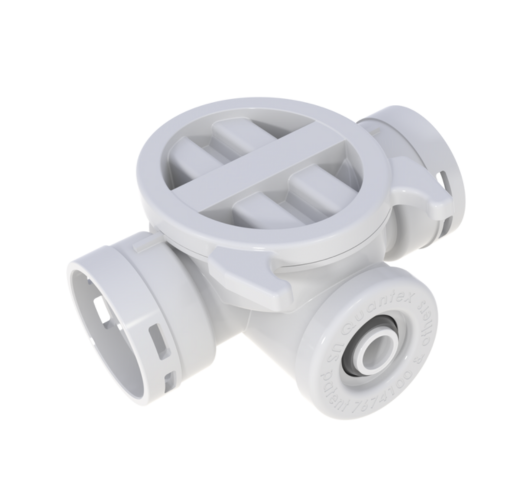

QX100-SD and QX100-HP

Suitable for high viscosity liquids and soft particulates

Features:

Flowrate: 0-27ml/s or 0-0.91floz/s at 10RPS*
Pressure regulating <10psig, high vacuum -7.5psig
12mm OD inlet and outlet
1.35ml resolution with 2 bolus rotor
Viscosity capability <100,000 cP
Pump particulates up to 4mm in diameter
High and Low pressure options available
Various fittings available: see brochure
High Pressure pump <50psi

*Depending on the application, up to 30ml/s can be achieved by running the pumps at 11RPS.

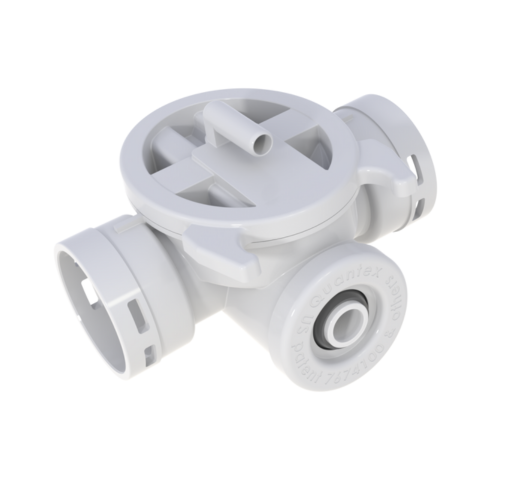

QX260-DL

Disposable pump with dilution

Features:

In-pump dilution
Flowrate: 0-27ml/s or 0-0.91floz/s at 10RPS*
Pressure regulating <10psig, high vacuum -7.5psig
12mm OD inlet and outlet
1.35ml resolution with 2 bolus rotor
Viscosity capability <100,000 cP
Pump particulates up to 4mm in diameter
Various fittings available: see brochure

*Depending on the application, up to 30ml/s can be achieved by running the pumps at 11RPS.

Technical Data

The pump is available in four variants:

SD – standard pressure, bi-directional pump with self priming.
HP – high pressure capable pump with self priming.
DL – in-pump dilution delivering mix ratios of 2:1 to 25:1.
HS – features an air inlet for high-speed running.

Application

The pump can be used in the food, beverage, consumer and industrial markets

Download

Download Brochure
