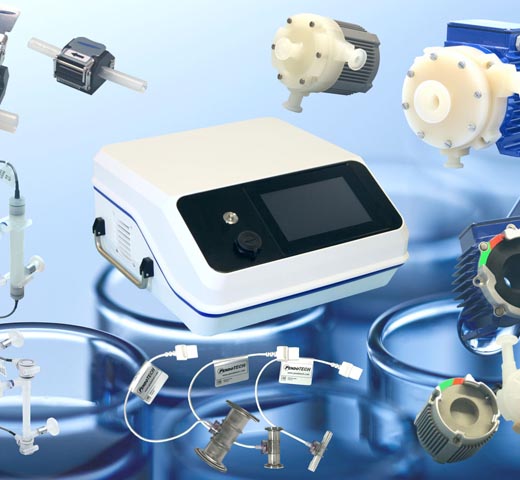

PuraLev LCO-600 Console

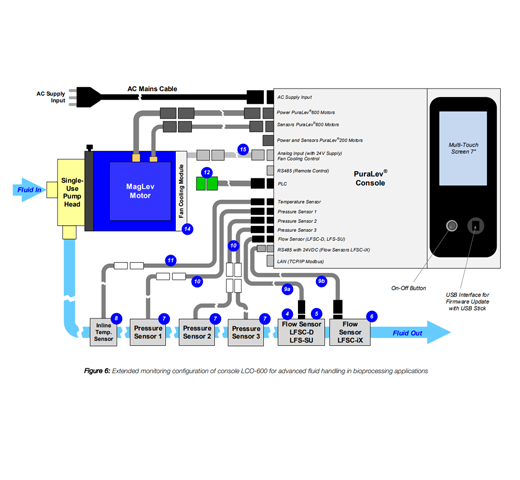

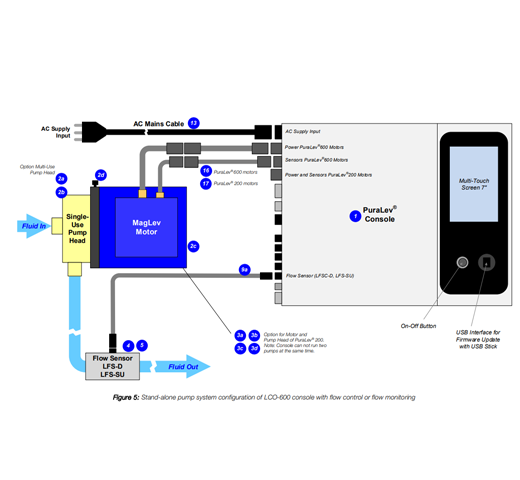

The PuraLev® Console integrates Levitronix® MagLev pumps with LEVIFLOW® ultrasonic flow sensors and adds a sophisticated user interface with enhanced connectivity features. The system allows various operating modes including stand-alone pumping with flow monitoring or flow control, pressure monitoring with up to 3 pressure sensors and temperature monitoring.

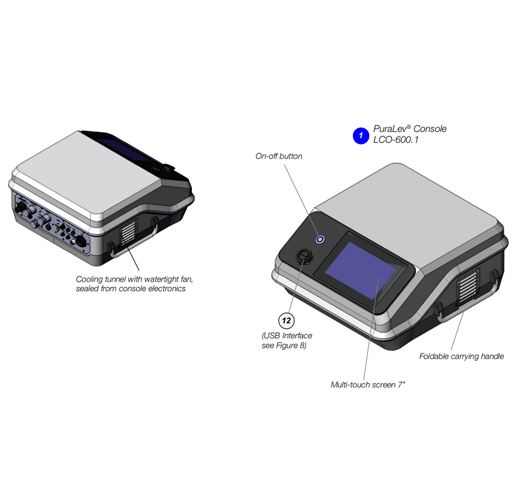

The brain of the PuraLev® Console is an embedded PC with a 7” multi-touch screen and it comes with software for flow control, configuration and monitoring of various sensors. An integrated pump controller can operate a PuraLev® 600 or PuraLev® 200 pump motor. Various integrated sensor signal converter circuits allow connection of LEVIFLOW® single-use and clamp-on flow sensors, and single-use pressure and temperature sensors from suppliers such as PendoTECH.

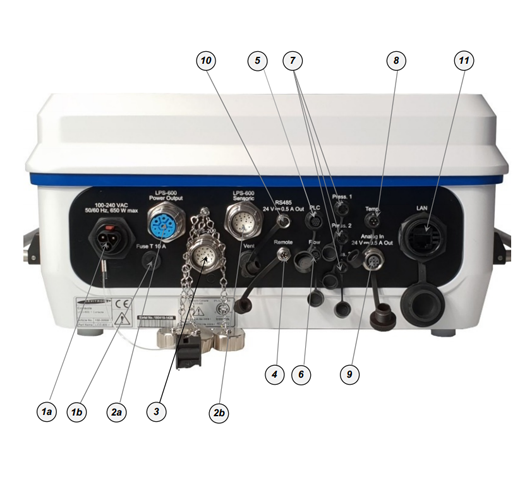

The IP66 housing is dust tight and allows wash down with powerful water jets from any direction. All connectors come with a protective cap for at least IP66 rated sealing if unused. The console can be placed horizontally on a table or mounted vertically on a wall. The display is rotatable by software.
