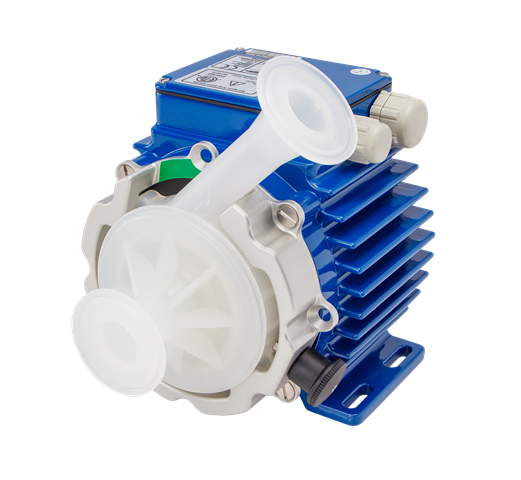

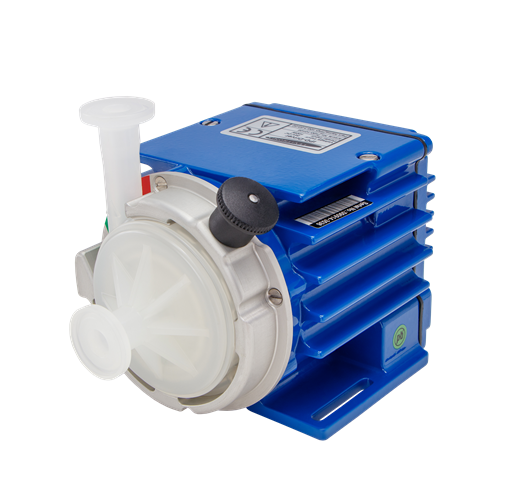

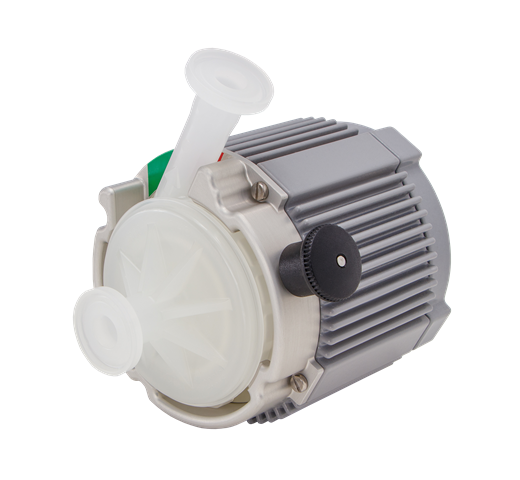

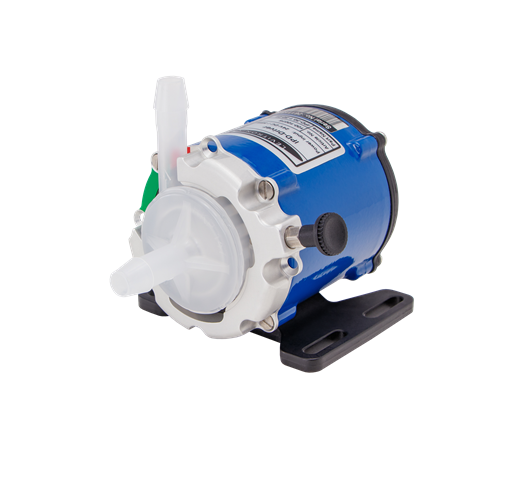

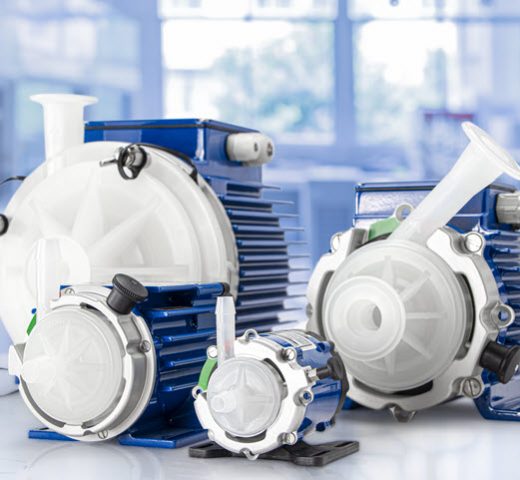

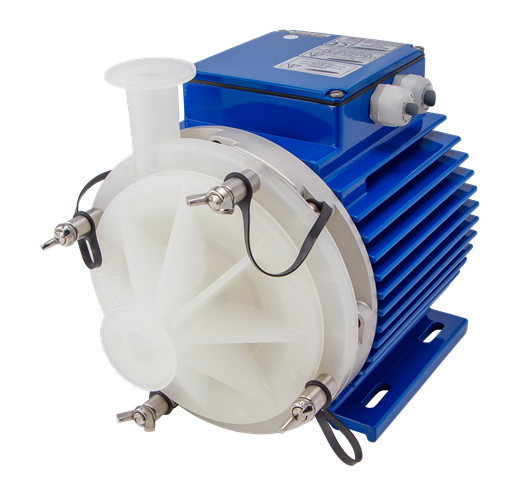

PuraLev Centrifugal Single Use Pump Series

Product Benefits

  • Low shear-forces
  • Reduced risk of contamination due to the self-contained design with magnetic bearings
  • No particle generation
  • No narrow gaps between the impeller and pump casing where bacteria could be entrapped
  • Pump-head is gamma sterilisable
  • Biocompatibility of wet materials: FDA, USP-VI, Animal/BSE/TSE free

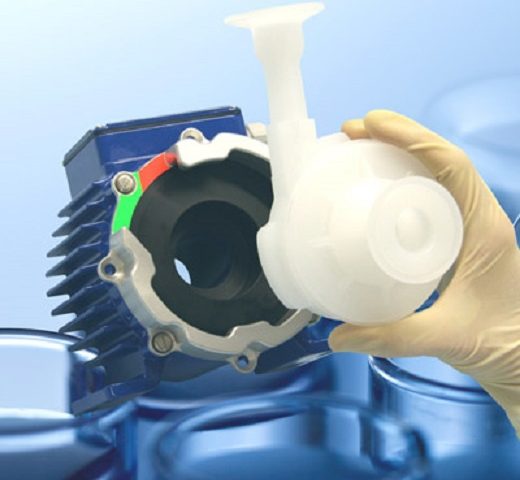

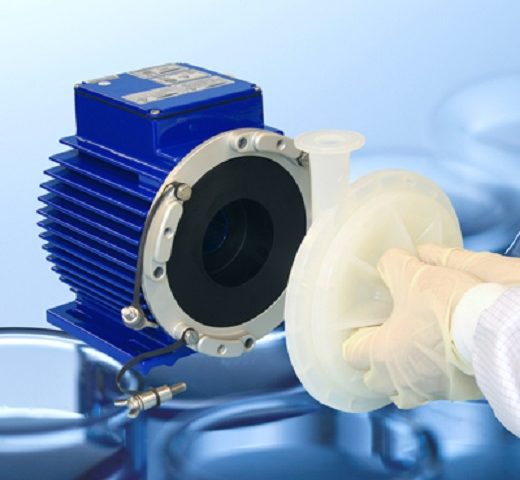

  • Bayonet socket design for easy and intuitive exchange of disposable pump head
  • Dry running capability
  • Proven technology in the medical (blood pumps) and semiconductor (high-purity) industries
  • High flow capability with a compact design
  • Pulsation free



Technical Data

Levitronix® has developed a revolutionary Centrifugal pump that has no bearings to wear out or seals to break. Based on the principles of magnetic levitation, the pump’s impeller is suspended, contact-free, inside a sealed casing and is driven by the magnetic field of the motor. The impeller and casing are both fabricated from biocompatible (FDA, USP-VI, ABSE/TSE free and Animal free) resins and together they make up the pump head. A continuous flow rate and pressure are precisely controlled by electronically regulating the rotor speed, which eliminates any pulsation. With the lack of mechanical bearings plus the self-contained pump head design, the risk of contamination is drastically reduced. The absence of narrow gaps between the impeller and pump casing, plus the low-shear pump design also allows the gentle pumping of sensitive liquids. This sanitary pump casing is fabricated with Tri-clamp fittings and has an aseptic seal design.

Save on your Energy Costs

The optimal match between pump speed and pump operating point ensures that you are always able to operate your pump at the point of greatest efficiency. This can result in significant energy savings compared to the typical throttling control of a fixed frequency pump.
