PuraLev LCO-2000 Console

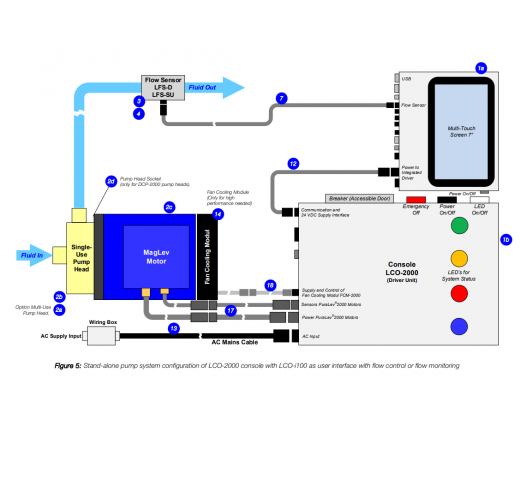

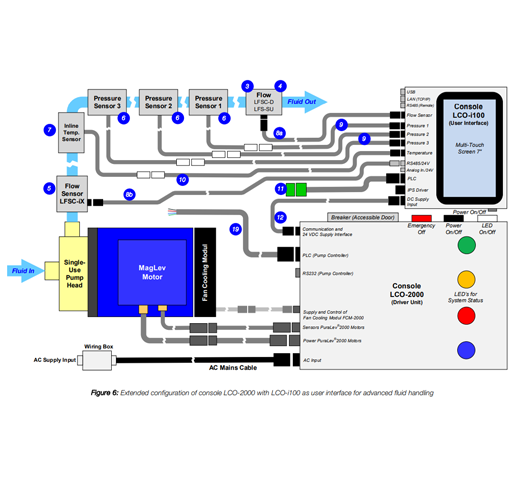

The PuraLev® console system integrates Levitronix® MagLev pumps with LEVIFLOW® ultrasonic flow sensors and adds a sophisticated user interface with enhanced connectivity features. The system allows various operating modes including stand-alone pumping with flow monitoring or flow control, pressure monitoring and control with up to three pressure sensors and temperature monitoring.

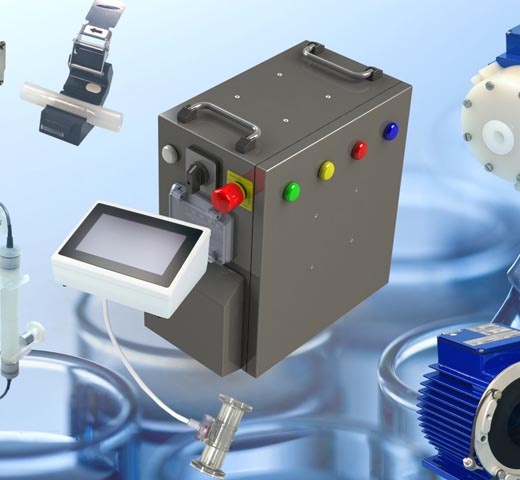

The PuraLev® console LCO-2000 contains the pump controller to drive the PuraLev® 2000 pump motor, an integrated fan cooling system and safety components. The housing is made out of stainless steel with a water protection design (IP54).

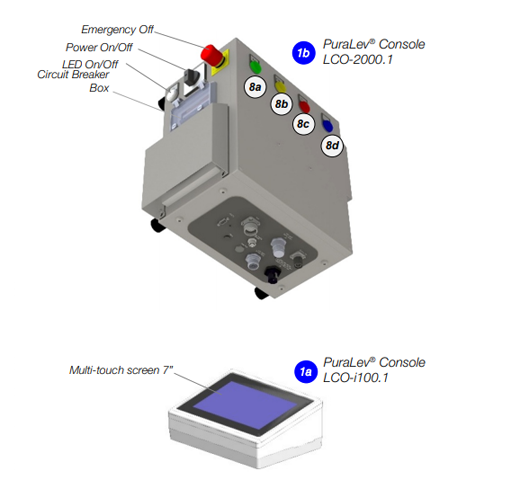

The console LCO-2000 can be controlled by the LCO-i100 console, which features an embedded PC with a 7” multi-touch screen and comes with software for flow control, configuration and monitoring of various sensors. Various integrated sensor signal converter circuits allow connection of LEVIFLOW® single-use and clamp-on flow sensors, and single-use pressure and temperature sensors from suppliers such as PendoTECH.
